TJA1102A/TJA1102AS, Dual/Single Port Automotive Ethernet 100BASE-T1 PHY Transceiver
TJA1102A is the revision of the successful TJA1102. The high performance, dual- or single-port automotive Ethernet PHY is compliant to IEEE 100BASE-T1. The device is passing all state of the art conformance test specs, including OPEN Alliance EMC Spec 2.0.

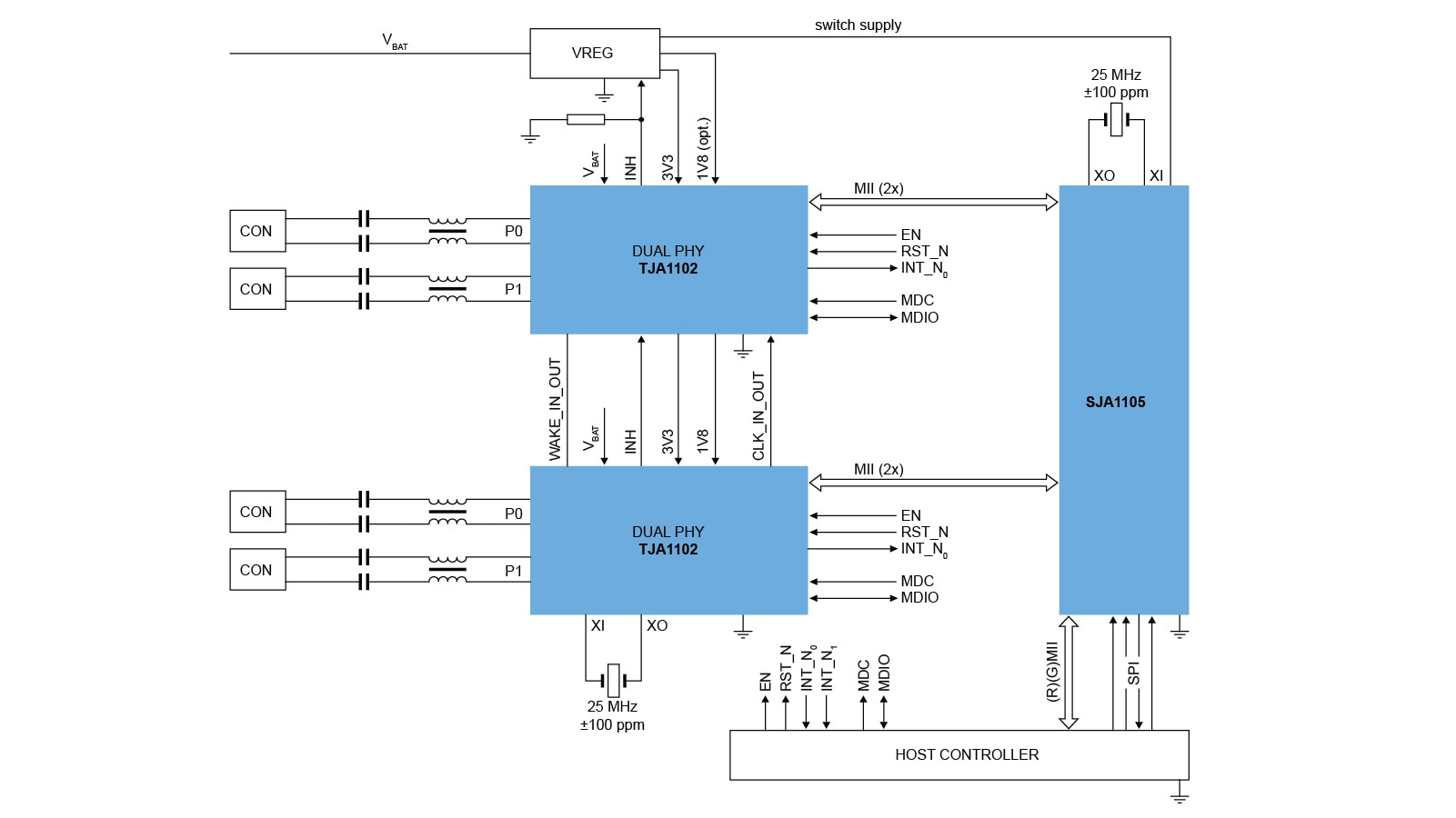

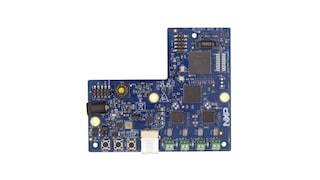

- The TJA1102A is optimized for board space. This PHY is often combined with NXPs SJA1105P/Q/R/S to build a highly efficient small port count Ethernet switch solution
- Being designed and fully qualified for automotive applications, the TJA1102A offers 100Mbit/s transmit and receive capability per port and up to at least 15m of unshielded twisted pair (UTP) cable
- The highly integrated device is robust by design, saving external filter and ESD protection components in the MDI path
- Future proof by enabling fully OPEN Alliance TC-10 compliant sleep and wake-up forwarding over the data line, it saves wire cost and weight by replacing dedicated wake-up lines
- Drop-in compatible single port variant TJA1102AHN/S
Product Details
Features
Automotive Qualified
- AEC-Q100 Grade 1
- Ambient Temperature -40 °C to 125 °C
IEEE 100BASE-T1 compliant PHY transceiver
- Pin to pin compatible single and dual port version
- Interoperable with any IEEE 100BASE-T1 and OABR compliant PHY
- 100 Mbps Ethernet over single unshielded twisted pair (UTP) cable
- Pin to pin compatible single and dual port version
OPEN Alliance TC-10 compliant sleep / wake up
- Sleep and Wake-Up forwarding over data line
- For reduced cable cost and weight
- With direct connection to VBat for simplified power management
Optimized for Automotive Usecases
- MDI pins do not need external filter or ESD protection
- Cable polarity detection and auto-correction
- Supports single 3.3 V supply
- Direct connection to VBat
Advanced Diagnostic Features
- Real-time Signal Quality Indicator
- Gap Free Under Voltage Detection
- Diagnosis of Cabling Errors
- HVQFN56 (8mm x 8mm) with wettable flanks
- Small PCB footprint enabled for AOI
- Dual- or single port variant
