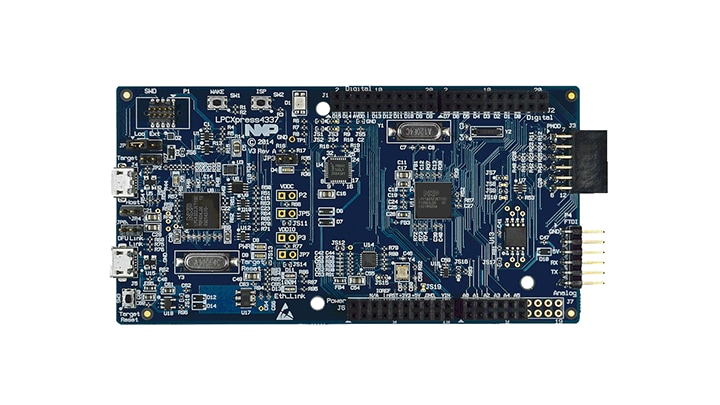

LPCXpresso18S37 Development Board

OM13076 Active

Roll over image to zoom in

The LPCXpresso family of boards provides a powerful and flexible development system for NXP®'s Cortex-M MCUs. The LPCXpresso18S37 board has been developed by NXP to enable evaluation of and prototyping with the LPC4300 family of MCUs, and features the LPC18S37 in its 100 PIN BGA package option.

LPCXpresso™ is a low-cost development platform available from NXP®, supporting NXP's Arm-based microcontrollers. The platform is comprised of a simplified Eclipse-based IDE and low-cost target boards which include an attached SWD debugger. LPCXpresso is an end-to-end solution enabling embedded engineers to develop their applications from initial evaluation to final production.

The order code for this board is OM13076.

Product Details

Supported Devices

Processors and Microcontrollers

LPC1800 Arm Cortex-M3

  • LPC18S37JBD144: 32-Bit Arm® Cortex®-M3 MCU; 1 MB Flash and 136 KB SRAM; Ethernet, Two High-Speed USB, EMC, AES Engine
  • LPC18S37JET100: 32-Bit Arm® Cortex®-M3 MCU; 1 MB Flash and 136 KB SRAM; Ethernet, Two High-Speed USB, EMC, AES Engine

Features

Microcontroller

  • LPC18S37 MCU running at up to 180 MHz

Connectivity

  • On-board Ethernet PHY (output available at expansion connectors)
  • FTDI UART connector
  • High-speed USB A/B connector for host or follower operation

Debug

    null

Support

  • Support for external debug probes
  • Expansion options based on Arduino® UNO Rev3 and Pmod™, plus additional expansion port pins
  • Tri-color LED
  • Target Reset, ISP and WAKE buttons
  • A7001CM secure element
  • 8 Mb Macronix quad SPI flash

Buy Options

OM13076-Image

Click to expand

  • OM13076
    Active

  • LPCXpresso18S37 Development Board.

    • Kit Contains:

    • LPCXpresso18S37 Development Board
    Order from distributors
