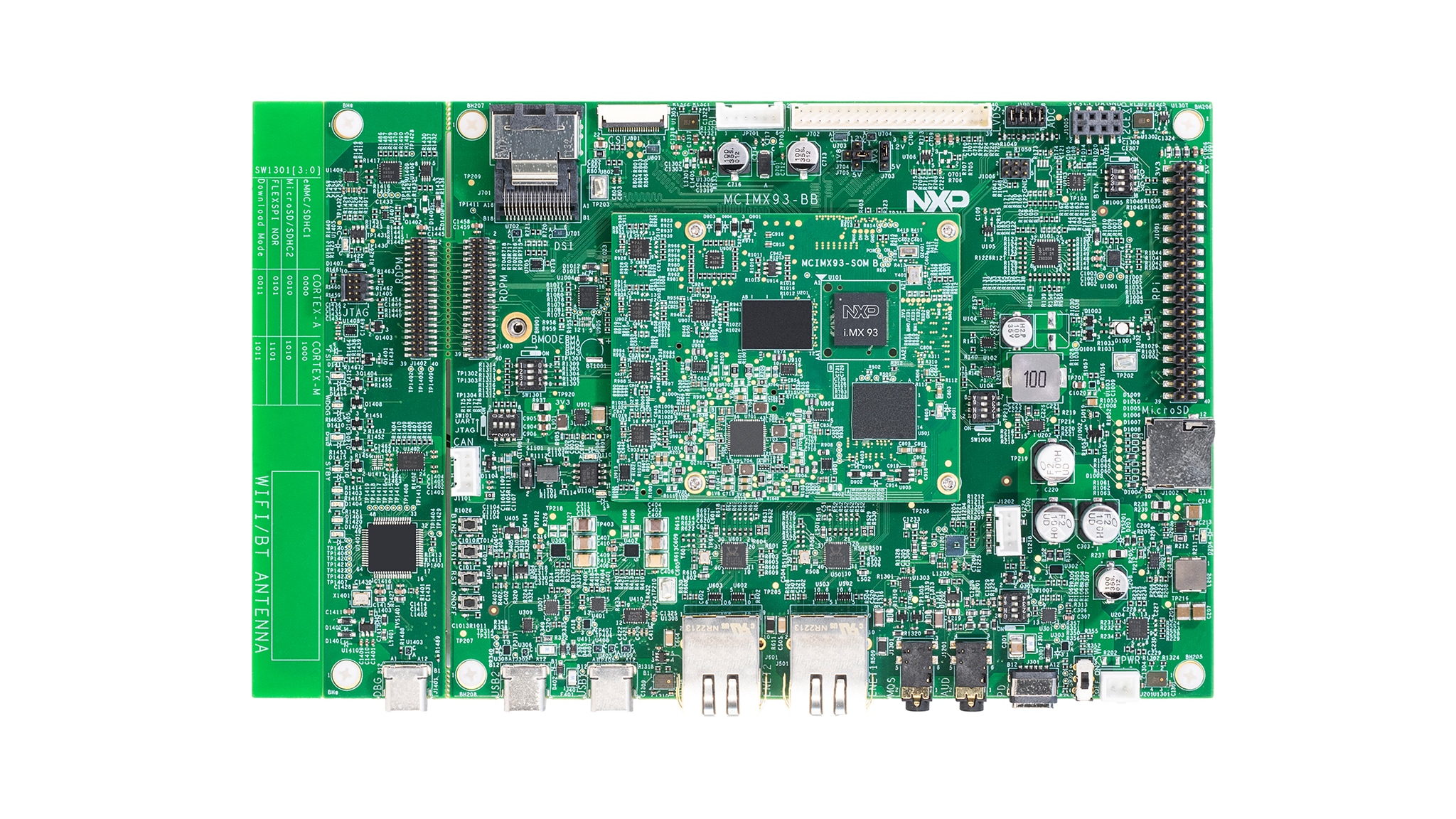

i.MX 93 Evaluation Kit

i.MX93EVK Active

Roll over image to zoom in

The i.MX 93 EVK for 11x11mm sample provides a platform for comprehensive evaluation of the i.MX 93 applications processors and also includes the ability to measure power consumption on the power rails.

The kit includes three boards interconnected:

  • A compute module (standard 6-layer technology) containing a superset i.MX 93 SoC (MIMX9352CVVXMAB), 2 GB LPDDR4X, 16GB eMMC, NXP’s PMIC (PCA9451A) and power monitoring circuits
  • A connectivity base board, which includes a standard M.2 E-KEY slot for plugging in off-the-shelf connectivity modules, such as Wi-Fi/BLE and LTE modules from NXP partners
  • An M.2 module with the Murata LBES5PL2EL module (containing NXP’s Wi-Fi 6 + BT 5.2 + IEEE 802.15.4 Tri-radio IW612 chipset) connected to an onboard Wi-Fi / BT dual antenna

The Linux-based board support package software is preloaded to boot from the compute module eMMC memory. This includes a rich “NXP Demo Experience” application to explore preinstalled demos. This kit provides an excellent starting point to accelerate your own design.

Supported Devices

Power Management

PMICs

  • PCA9451A: PCA9451A Power Management IC for i.MX 93x/91x Application Processor
  • PF09: 9-Channel PMIC for High-Performance Applications, ASIL D and SIL-2

Processors and Microcontrollers

i.MX 9 Processors

  • i.MX93: i.MX 93 Applications Processor Family – Arm® Cortex®-A55, ML Acceleration, Power Efficient MPU

Wireless Connectivity

Wi-Fi® + Bluetooth® + 802.15.4

  • IW612: 2.4/5 GHz Dual-Band 1x1 Wi-Fi® 6 (802.11ax) + Bluetooth® 5.4 + 802.15.4 Tri-Radio Solution

Features

Processor

  • i.MX 93 Applications Processor
  • Dual Cortex-A55 @1.7GHz
  • Cortex-M33 @250MHz
  • Arm® Ethos™ U-65 MicroNPU
  • EdgeLock® Secure Enclave

Memory

  • 2 GB LPDDR4X / LPDDR4
  • 16 GB eMMC5.1
  • Quad SPI Flash
  • MicroSD Slot

Display and Camera Interfaces

  • MIPI DSI (mini-SAS)
  • X4 Lane LVDS (HDR)
  • MIPI-CSI (Camera 22P RPi)
  • Parallel RGB LCD (2x20 RPi)
  • Parallel Camera (2x20 RPi)

Wireless

  • M.2 module with NXP’s Wi-Fi 6 Tri-radio IW612

Audio

  • Audio HP Jack
  • External Speaker Connection
  • MQS Support
  • Audio HAT Board Support
  • PDM MIC Array Support

Connectivity

  • X2 USB C 2.0 Connectors
  • 2x GbE RJ45
  • CAN (HDR)
  • RPi 2X20 GPIO HDR
  • MFi Module Support
  • X4 CH ADC Support

Debug

  • JTAG Connector
  • UART Via USB C
  • Remote Debug Support
  • Power Measurement Support

Sensors

  • I3C IMU Support

Security

  • X2 Tamper Support

Tools and OS Support

  • Linux®
  • FreeRTOS

Buy Options

MCIMX93-EVK-Image

Click to expand

  • MCIMX93-EVK
    Active

  • MPU / Linux® Hosted Matter Development Platform.

  • Kit Contains

    • i.MX 93 CPU Module (PMIC PCA9451A)
  • $622.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 59
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
MX93AUD-HAT-Image

Click to expand

  • $132.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 2
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
MCIMX93-EVKPF09-Image

Click to expand

  • MCIMX93-EVKPF09
    Active

  • i.MX 93 Evaluation Kit.

  • Kit Contains

    • i.MX 93 CPU Module (PMIC PF09)
RPI-CAM-MIPI-Image

Click to expand

  • RPI-CAM-MIPI
    Active

  • IAS Camera to RPi Camera Adapter (AR0144 Sensor).

  • $116.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 56
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
DY1212W-4856-Image

Click to expand

  • DY1212W-4856
    Active

  • 12.1" TFT LCD Display with LVDS Connector (Touch Panel).

  • $346.00 USD
  • For a quantity of 1
    • Availability: In Stock
    • Inventory: 28
    • Shipping: Normally ships 1-2 business days
ADD TO CART
Order from distributors
