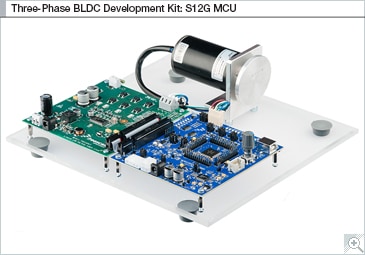

S12G 3-Phase BLDC Development Kit

MTRCKTSBNG128 Active

Roll over image to zoom in

The MTRCKTSBNG128 motor control development kit is ideal for sensorless and Hall sensor-based applications requiring one BLDC motor, such as HVAC or electric pumps.

  • Designed to enable rapid prototyping and evaluation of the motor control application without the need to wait for the final hardware design
  • Includes a 16-bit MC9S12G128 based controller board and a 3-phase, low-voltage power stage board
  • The application software provides a complete reference for implementation of the BLDC motor control application

Product Details

Supported Devices

Interfaces

Automotive LIN Solutions

  • MC33905: SBC Gen2 with High-Speed CAN and LIN

Pre-Drivers

  • MC33937: 3-Phase Field Effect Transistor Pre-Driver

Processors and Microcontrollers

16-Bit S12 and S12X MCUs

  • S12G: Ultra-Reliable S12G General Purpose Automotive and Industrial Microcontrollers

Features

Microcontroller

  • MC9S12G128

Power Management

  • 3-phase low-voltage power stage based on SMARTMOS®™ MC33937A pre-driver
  • Supports low-voltage BLDC motors
  • DC-bus overvoltage, overcurrent, and undervoltage fault detection

Support

  • FreeMASTER visualization/configuration support
  • Extensive documentation for software and hardware
  • ANSI-C based motor control reference software with easy portability

Buy Options

MTRCKTSBNG128-Image

Click to expand

  • MTRCKTSBNG128
    Active

  • S12G128 Development Kit for 3-phase sensorless BLDC.

    • Kit Contains:

    • 3-phase, low-voltage power stage based on SMARTMOS™ MC33397A pre-driver
    • NXP 16-bit MC9S12G128 controller board
    • AC/DC 24 V universal power supply kit
    • 3-phase BLDC low-voltage motor
    • USB 2.0 A-B type cable, ribbon cables for power stage and controller board connection
    • Fact sheet and quick start guide
